Are you struggling to connect copper pipes of different diameters? Whether you are working on a home renovation, plumbing repair, or installing a new system, this is a common challenge. Copper pipes are often used in plumbing because of their durability and resistance to corrosion. However, many plumbing systems require connecting pipes of different diameters. If done incorrectly, this can lead to leaks, water damage, and costly repairs.
In this post, you'll learn how to effectively connect copper pipes of different diameters. We'll cover essential tools, methods, and step-by-step processes to ensure a secure and leak-free connection. With the right fittings and a little know-how, you'll be able to handle this task confidently, ensuring your plumbing system works efficiently.
Copper pipes are an essential part of plumbing systems due to their strength, longevity, and ability to resist corrosion. However, plumbing systems often require pipes of varying sizes. This is because different sections of a plumbing system may require larger or smaller pipes to accommodate the flow of water or gas.
Connecting copper pipes of different diameters is especially common when:
Transitioning from a larger pipe to a smaller one (e.g., from a main supply line to a faucet).
Upgrading plumbing systems by integrating old pipes with new ones.
Replacing or repairing sections of the pipe with different diameters due to wear and tear.
If you don't connect these pipes properly, it can result in issues such as water leaks, low pressure, or even system failure. Therefore, understanding how to connect pipes of different diameters correctly is crucial for maintaining the functionality and safety of your plumbing system.
Transitioning from a larger pipe to a smaller one: This typically happens when a main water supply pipe needs to be connected to a faucet or smaller line.
Integrating old pipes with new ones: Many older plumbing systems use larger pipes that need to be connected to smaller pipes when upgrading to modern systems.
Repairing or expanding plumbing systems: New plumbing installations or repairs often require connecting copper pipes of different sizes to ensure seamless water flow.
Prevents Leaks: Ensures a tight, secure connection to avoid water leaks.
Maintains Water Flow: Proper connections maintain consistent pressure and prevent bottlenecks in the system.
Improves System Efficiency: A proper connection leads to better water or gas flow, reducing strain on your plumbing system.
Increases Longevity: Proper connections help prevent corrosion or damage to the pipes, ensuring your system lasts longer.
To connect copper pipes of different diameters, you'll need several essential tools. Here's a rundown of the most important ones:
Pipe Cutter: This tool is used to make clean, straight cuts in copper pipes. It ensures the edges are smooth and even, which is essential for a leak-free connection.
Deburring Tool: After cutting the pipes, this tool is used to remove burrs and rough edges from the pipe ends. This ensures a smoother connection and prevents potential leaks.
Measuring Tape: Measuring the pipes accurately before cutting is vital. A measuring tape helps you get precise measurements for the right pipe lengths and proper fitting installation.
Wrench or Crimping Tool: These tools are used to tighten and secure the connection, ensuring the fitting stays in place without leaking.
Pipe Fittings (Reducers, Couplings, Elbows, etc.): Fittings are necessary to connect pipes of different diameters. Reducer fittings are typically used for connecting two pipes of different sizes.
Copper pipes come in various sizes, each suitable for different plumbing applications. Common diameters include:
15mm and 22mm: These sizes are used for residential water supply systems, particularly in domestic plumbing for faucets, sinks, and showers.
28mm and 35mm: These larger sizes are typically used for main water supply lines and heating systems in residential and commercial buildings.
42mm and larger: Larger diameters are commonly used in industrial or commercial applications that require higher flow rates.
Nominal size refers to the approximate diameter of a pipe and is commonly used in the plumbing industry. However, the actual size of a pipe (inner diameter, ID, and outer diameter, OD) can differ slightly. It is essential to understand these differences when selecting fittings, as using the wrong size can cause poor connections or leaks.
Reducer fittings are specifically designed to connect two copper pipes of different diameters. They come in straight or elbow shapes and allow smooth transitions between larger and smaller pipes. Reducer fittings are commonly used when one pipe is larger than the other.
To use a reducer fitting:
Measure and cut the copper pipes accurately using a pipe cutter.
Clean the pipe ends using a deburring tool to remove burrs.
Slide the reducer fitting onto the smaller pipe.
Connect the larger pipe to the other end of the fitting.
Tighten the fitting securely to ensure a leak-free connection.
Compression fittings are a reliable method for connecting pipes of different sizes without the need for soldering. They use a compression nut and ring that creates a watertight seal. This method is easy to use and doesn't require any heat.
Compression fittings are ideal for connecting pipes where soldering or brazing is impractical. They are commonly used for small residential plumbing projects, especially by DIYers.

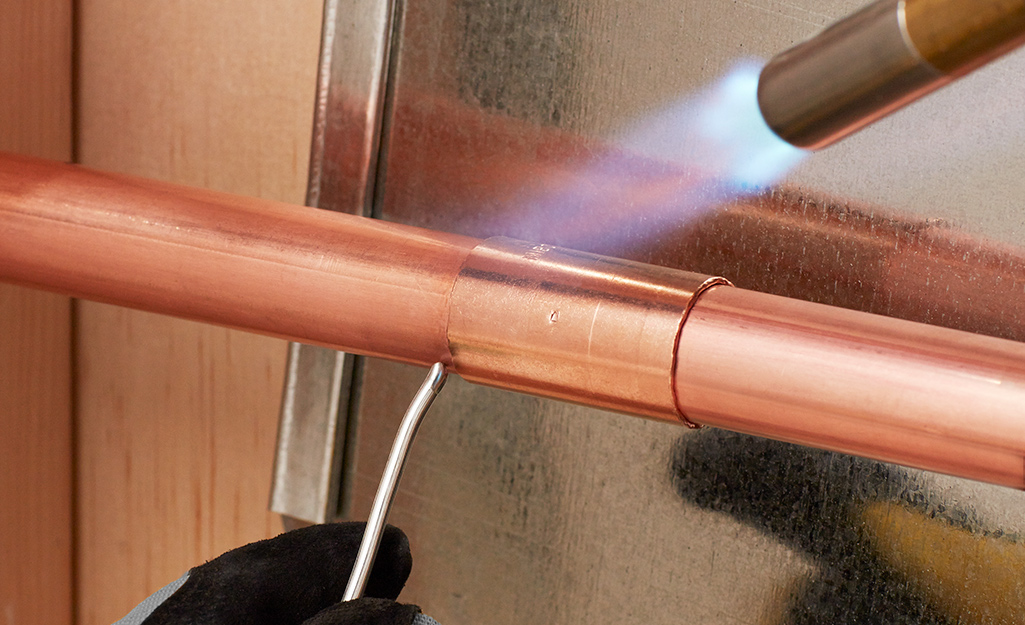

Soldering involves melting a filler metal, called solder, to bond two copper pipes. This method creates a permanent, durable connection. It is ideal for larger pipes or systems requiring a strong bond.
Brazing is similar to soldering, but it uses a higher-temperature process. It is best used for larger pipes or high-pressure systems where a stronger bond is required.
Push-on fittings are an easy-to-install option that uses an O-ring to create a tight seal. They are perfect for DIYers and simple plumbing tasks.
Push-on fittings are fast to install, but they may not be suitable for high-pressure systems or long-term use. They are ideal for residential applications where pressure requirements are lower.
Threaded connections are typically used in industrial settings. They provide a secure, leak-proof bond by screwing fittings onto the pipes. This method is commonly used for larger pipe sizes and in situations that require higher strength.
Use a pipe cutter to make a clean, precise cut. Measure both pipes and mark the desired length to ensure accurate cuts. Make sure to cut both pipes straight to avoid difficulties in fitting.
After cutting, use a deburring tool to remove any rough edges or burrs from the pipe ends. This step is essential to ensure a smooth, tight fit between the pipe and the fitting, which helps prevent leaks.
Choose the appropriate fitting that matches both the size of the pipes and the type of connection required. Reducers are the most common fittings used for connecting pipes of different diameters, but you may need other types depending on the connection method.
Slide the selected fitting onto the pipes, ensuring they are properly aligned. Tighten the connection using a wrench or crimping tool. Follow the manufacturer's instructions to ensure the fitting is secure.
Once the pipes are connected, turn on the water and check for leaks around the fitting. If you notice any leaks, tighten the fitting further or adjust the alignment to ensure a better seal.
Clean the pipe ends thoroughly to ensure a smooth, tight connection.
Use quality fittings that match your pipe specifications for the best results.
Ensure proper alignment before tightening the fittings to prevent leaks.
Do not over-tighten fittings as this can damage the pipes or fittings and cause leaks.
Leaks are the most common issue when connecting copper pipes. They can occur due to improper fitting selection, misalignment, or damage to the pipe ends.
To fix leaks, try tightening the fitting further or replacing the seals. If the leak persists, ensure the pipe ends are smooth and clean before reassembling the connection.
Choosing the wrong fitting can lead to leaks or ineffective connections. Always check the specifications of both the pipe and the fitting before installation.
If the fittings won't tighten, check for any obstructions or misalignment. Realign the pipes and ensure the threads are properly engaged.
Connecting copper pipes of different diameters doesn't have to be complicated. By using the right fittings and following the proper steps, you can ensure a secure, leak-free connection. Whether you're using compression fittings, soldering, or push-on fittings, the key is selecting the right method for your plumbing system. With the right tools and techniques, you'll be able to handle this common plumbing task with ease and confidence.
At HXZH, we offer a wide range of high-quality copper pipe fittings to help ensure a perfect connection every time. From reducing fittings to compression fittings, we have the right solutions for your plumbing needs. Let us help you make your plumbing system more efficient and durable.
Q: Can I use push-on fittings for high-pressure plumbing systems?
A: Push-on fittings are typically not recommended for high-pressure systems. They are ideal for low-pressure residential plumbing, as they offer a quick and easy connection. For high-pressure systems, it's better to use compression fittings or soldering methods, as they provide stronger, more reliable seals.
Q: How can I tell if my copper pipe connection is leaking?
A: Look for visible water droplets or dampness around the connection. If there is no obvious sign, you can turn on the water supply and monitor the area for any seepage. Performing a pressure test can also help detect leaks in the system.
Q: What tools are absolutely necessary for connecting copper pipes of different diameters?
A: Essential tools include a pipe cutter for clean cuts, a deburring tool to smooth pipe edges, measuring tape for accurate measurements, and wrenches or crimping tools to secure connections. Fittings like reducers and couplings are also necessary for a proper connection.
Q: Is soldering the best method for connecting large copper pipes?
A: Soldering is a reliable method for connecting large copper pipes, especially for permanent connections. It is commonly used in plumbing systems under normal pressure. For even larger pipes or high-pressure systems, brazing is a better option as it provides stronger joints.
Q: Can compression fittings be used in residential plumbing systems?
A: Yes, compression fittings are ideal for residential plumbing systems, especially for smaller pipes. They are easy to install without heat, making them suitable for DIY projects. However, they may not be as durable as soldered or brazed connections for larger, high-pressure systems.
