How Far Should a Grounding Rod Be from a House?

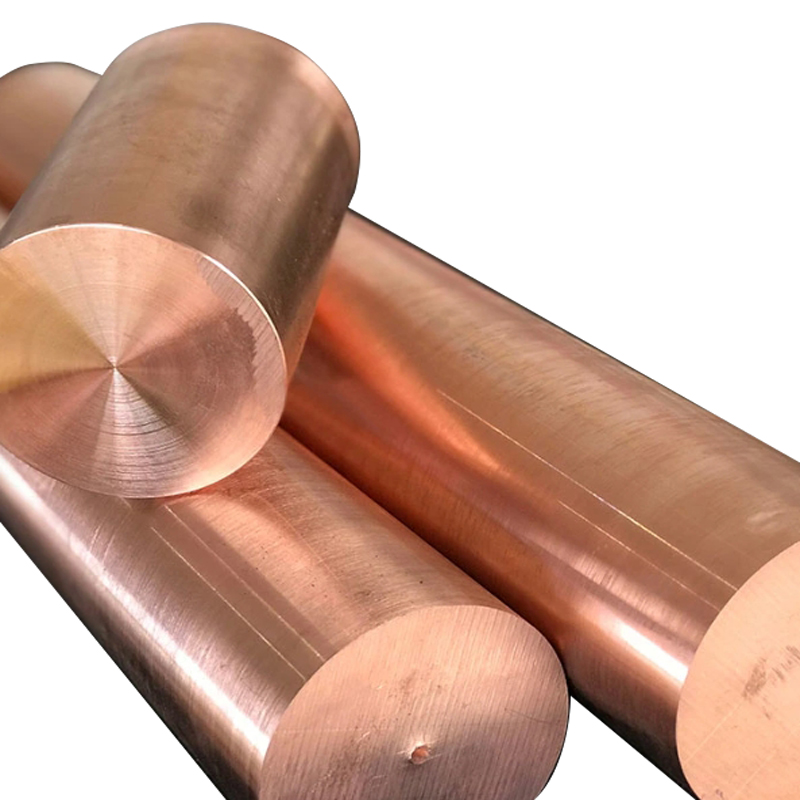

Proper grounding is essential for electrical safety in residential, commercial, and industrial settings. A copper grounding rod is a key component of an electrical grounding system, helping to protect people and equipment from electrical faults and lightning strikes. When installing a copper earth rod, one of the most common questions is: How far should a grounding rod be from a house?

This article will explore the recommended distance for a copper grounding rod, code requirements, installation methods, and other crucial factors to ensure a safe and effective grounding system. We will also compare different types of grounding rods and their effectiveness, helping you choose the best copper earth rod for your needs.

What Are the Code Requirements for Ground Rods?

Electrical grounding is governed by strict regulations to ensure compliance and safety. In the United States, the National Electrical Code (NEC) provides guidelines for grounding rod installation. The most relevant NEC articles that address grounding rods include:

• NEC 250.52(A)(5): Specifies that a grounding electrode (such as a copper grounding rod) must be at least 8 feet long and must be installed in direct contact with the earth.

• NEC 250.53(A): Requires that if a single grounding rod has a resistance of more than 25 ohms, a second rod must be installed at least 6 feet apart from the first one.

• NEC 250.56: States that an individual grounding rod should have a resistance of 25 ohms or less to be considered effective.

Key Requirements for Ground Rod Installation:

How to Install a Ground Rod

Installing a copper grounding rod properly is crucial for an effective grounding system. Here’s a step-by-step guide to ensure a safe and code-compliant installation:

Tools & Materials Needed:

• Copper grounding rod (at least 8 feet long)

• Ground rod clamp

• Sledgehammer or ground rod driver

• Copper grounding wire (minimum #6 AWG for residential applications)

• Wire cutters

• Grounding bus bar (if required)

• Multimeter (to check resistance)

Step-by-Step Installation Process:

1. Choose a Proper Location: Select a spot near your electrical panel but at least 2 feet away from the house foundation. Avoid rocky or extremely dry soil, as it may reduce grounding effectiveness.

2. Drive the Rod into the Ground: Use a sledgehammer or a ground rod driver to drive the copper earth rod into the soil. The rod should be at least 8 feet deep to meet NEC standards.

3. Attach the Grounding Wire: Connect a copper grounding wire (minimum #6 AWG) from the rod to the grounding bus bar or electrical panel. Secure the connection using a ground rod clamp.

4. Test the Grounding System: Use a multimeter or specialized ground resistance tester to measure the resistance. If resistance is above 25 ohms, install an additional copper grounding rod at least 6 feet away.

5. Secure the Installation: Ensure all connections are tight and protected against corrosion. Use conductive grease if necessary.

By following these steps, you can ensure that your copper grounding rod is installed correctly and meets safety and code requirements.

How Far Should a Grounding Rod Be from a House?

The distance between a copper grounding rod and a house is crucial for effectiveness and safety. The NEC does not specify an exact minimum distance from a house foundation, but industry best practices suggest:

• At least 2 feet away from the foundation: This prevents potential interference with the building’s structural integrity and electrical system.

• 6 to 8 feet for optimal performance: This distance helps reduce electrical interference and ensures a better grounding connection.

• More than 6 feet apart for multiple rods: If installing multiple rods, they should be spaced at least 6 feet apart to enhance grounding efficiency.

Factors Influencing Distance:

• Soil Type: Wet and conductive soil allows for better grounding, meaning you can place the rod closer to the house. Dry or sandy soil may require rods to be placed farther apart.

• Building Material: If the foundation includes rebar or other conductive materials, keeping a copper earth rod slightly farther away can prevent unintended grounding issues.

• Electrical Interference: Placing the grounding rod too close to underground utilities or metal structures may cause unwanted electrical interference.

Recommended Distances:

Do Grounding Rods Have to Be Perfectly Vertical?

Grounding rods are typically installed vertically, as this provides the best contact with the earth and ensures proper grounding. However, according to NEC 250.53(G):

• If a copper earth rod cannot be driven vertically due to obstacles (such as bedrock or underground utilities), it can be installed at a maximum 45-degree angle.

• In extreme cases where vertical or angled installation is not possible, the rod can be buried horizontally in a trench at least 30 inches deep.

Vertical vs. Angled vs. Horizontal Installation:

What Size Earth Rod Do I Need?

The size of a copper earth rod depends on local electrical codes, soil conditions, and the grounding system's requirements. The most commonly used sizes are:

• Diameter: 5/8 inch (minimum for residential applications)

• Length: 8 feet (standard per NEC)

• Material: Copper grounding rod (solid or copper-bonded steel)

For areas with highly resistive soil, longer rods (up to 10 or 12 feet) or multiple rods may be necessary.

Comparison of Ground Rod Sizes:

Conclusion

Proper grounding is essential for electrical safety, and installing a copper grounding rod correctly is crucial for an effective system. The rod should be placed at least 2 feet from the house foundation, with 6–8 feet being ideal for optimal grounding. Multiple rods should be spaced at least 6 feet apart.

When installing a copper earth rod, ensure it meets NEC standards, is driven vertically whenever possible, and has a resistance of 25 ohms or less. By following these guidelines, you can ensure a safe and reliable electrical grounding system.

FAQs

1. Can I install a grounding rod inside my house?

No, a copper grounding rod must be installed outdoors in direct contact with the earth.

2. What happens if my ground rod resistance is too high?

If resistance exceeds 25 ohms, install an additional copper earth rod at least 6 feet away.

3. Can I use rebar as a grounding rod?

Rebar can be used in some cases, but a copper grounding rod is preferred due to better conductivity and corrosion resistance.

4. How do I test the effectiveness of my grounding rod?

Use a ground resistance tester or multimeter to measure resistance.

5. Should I install more than one grounding rod?

If resistance is too high or local codes require it, install multiple rods at least 6 feet apart.
